notes

https://rlhfbook.com/book.pdfa

Introduction

• RLHF is used to incorporate human information into AI systems

---

Training Overview

RL Context

• Agent takes action $a_t$ sampled from policy $\pi (a_t|s_t)$ in state $s_t$ to maximize reward $r(s_t,a_t)$
• Policy $\pi$ maps state to a probability distribution over actions
• RLHF uses deep reinforcement learning policies - where $\pi$ is a deep neural network
• Transitions are probabilities from current state + current action to next state $p(s_{t+1}|s_t,a_t)$ with an initial state distribution of $p_0(s_0)$
• Policy and transitions make up a trajectory distribution
• Trajectories overal probability $p_{\pi }(\tau )=p_0(s_0){\prod }_{t=0}^{T-1}\pi (a_t|s_t)p(s_{t+1}|a_t)$
  • across finite horizon $T$
• Goal of RL Agent ${\max }_{\pi }{\mathbb{E}}_{\tau \sim p_{\pi }}\left[{\sum }_{t=0}^{T-1}{\gamma }^{t}r(s_t,a_t)\right]$
  • maximises the future expected reward where $\gamma$ determines how far outlooking the agent is
• $J(\pi )$ indicates the expected return for a policy and $J^{\ast }(\pi )$ indicates the optimal policy.
• $T\to \infty$ and $\gamma <1$ for well-defined objectives

Training Objective/Loop for RLHF

$$\underset{\pi }{\max }{\mathbb{E}}_{\tau \sim \pi }\left[r_{\theta }(s_t,a_t)\right]-\beta {\mathcal{D}}_{KL}(\pi (\cdot |s_t)||{\pi }_{ref}(\cdot |s_t))$$

where

• $r_{\theta }$ is the learned reward/preference model
• ${\pi }_{ref}$ is a frozen snapshot of the policy/model before optimisation
• $\beta$ influence how close the model is to its starting position

We use the KL-divergence to ensure that the model does not over optimise as we are using a strong prior (the pretrained model)

Differences between RLHF and the standard RL

1. Uses a reward model
   • Increases flexibility of approach and control for the designer
   • Model is trained on human preferences
2. No state transitions exist - goes from prompt to answer
3. Response-level reward and no discounting

Why RL in post-training LMs?

• Can fix rough edges of the model - making it easy to talk to as an assistant
• Can be done surgically - RL does not squash the capabilities of the model

Examples of Recipes

• Instruct GPT - Instruction tuning on 10K examples -> Training a reward model on 100K pairwise prompts -> Training instruction-tuned model with RLHF on a seperate 100K prompts
• Tulu 3 -> More overall prompts -> On-policy preference data on 1M preference pairs -> RLVR on 10K prompts

---

Instruction Fine-Tuning

Training a base model to answer in an user/assistant format

Chat template - the format of interaction between user/assistant that the model must conform to

• Three roles:
  • system - system prompt
  • user
  • assistant

Best practices

• High quality data
• Around 1M prompts
• Similar distribution to downstream tasks of interest
• Training after instruction tunign allows models to receover from some noise

Implementation details

• Smaller batch sizes - allows models to optimize to a narrower data distribution whilst preserving models generalization
• Prompt masking - prompt tokens are masked out so model does not learn to predict the user queries
• Multi-turn masking
  1. Final turn only - only tokens in final assistant turn is included in the loss
  2. Mask user turn only - all user tokens masked, loss includes all assistant turns
• Same loss as pretraining
• Lower learning rate

---

Reward Modelling

Constructing a model to learn human preferences in prompts

Notation

• $x$ - prompts
• $y$ - completions

Bradley-Terry model of preference - Probability that in a pairwise comparison between two items $i$ and $j$, a judge prefers $i$ over $j$

$$P(i<j)=\frac{p_i}{p_i+p_j}$$

• assumes that each item has $p_i>0$
• often is reperametrized where $p_i=e^{r_i}$

$$P(i<j)=\frac{e^{r_i}}{e^{r_i}+e^{r_j}}=\sigma (r_i-r_j)$$

- where $\sigma$ is the sigmoid function

Loss function

Reward model is trained on a loss function based on the Bradley-Terry relation. To do so it is given a small linear layer to be able to predict a scalar score.

Given prompt $x$ and two sampled completions $y_c$ and $y_r$, where $y_c$ is the chosen completion and $y_r$ is the rejected one, the loss function per example is

$$\mathcal{L}(\theta )=\log \left(1+e^{r_{\theta }(y_r\mid x)-r_{\theta }(y_c\mid x)}\right)$$

When training language models only one epoch is completed to prevent overfitting.

Outcome Reward Models

Learning a per-token signal of how likely the completion is to end in a correct answer over time

Here we are given a prompt $x$ and our inductive bias is that one completion should be correct whereas the others are incorrect, $(y_c,y_{ic})$. The ORM is training a per-token predictor of if an answer is correct. The per-token loss function applies the binary cross-entropy at each completion token, where each token’s outcome probability is trained towards the sequence’s outcome label.

$${\mathcal{L}}_{\text{token}}(\theta )=-{\mathbb{E}}_{(s,r)\sim \mathcal{D}}\left[\frac{1}{T}\sum _{t=1}^T(r\log p_{\theta }(s_t)+(1-r)\log (1-p_{\theta }(s_t)))\right]$$

where

• $s$ is a completion of $T$ tokens
• $r\in \{0,1\}$ - binary label of correctness
• $p_{\theta }(s_t)=\sigma (w_{\theta }(s_t))$ - probability of correctness predicted at token $t$ from model’s scalar logit $w_{\theta }(s_t)$

Process Reward Models

Reward models trained to output scores at every step in a chain-of-though reasoning process

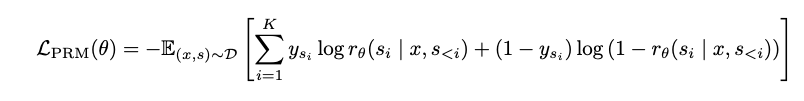

PRMs is often optimized with a per-step cross-entropy loss: where

• $s$ is a sampled chain-of-thought with $K$ annotated steps
• $y_{s_i}\in \{0,1\}$ denotes whether $i$-th step is correct
• $r_{\theta }(s_i|x,s_{<i})$ - PRMs predicted probability that step $s_i$ is valid condition on prompt $x$ and all previous steps $s_{<i}$
